LYC railway bearings unveiled at the 2023 Shanghai Exhibition

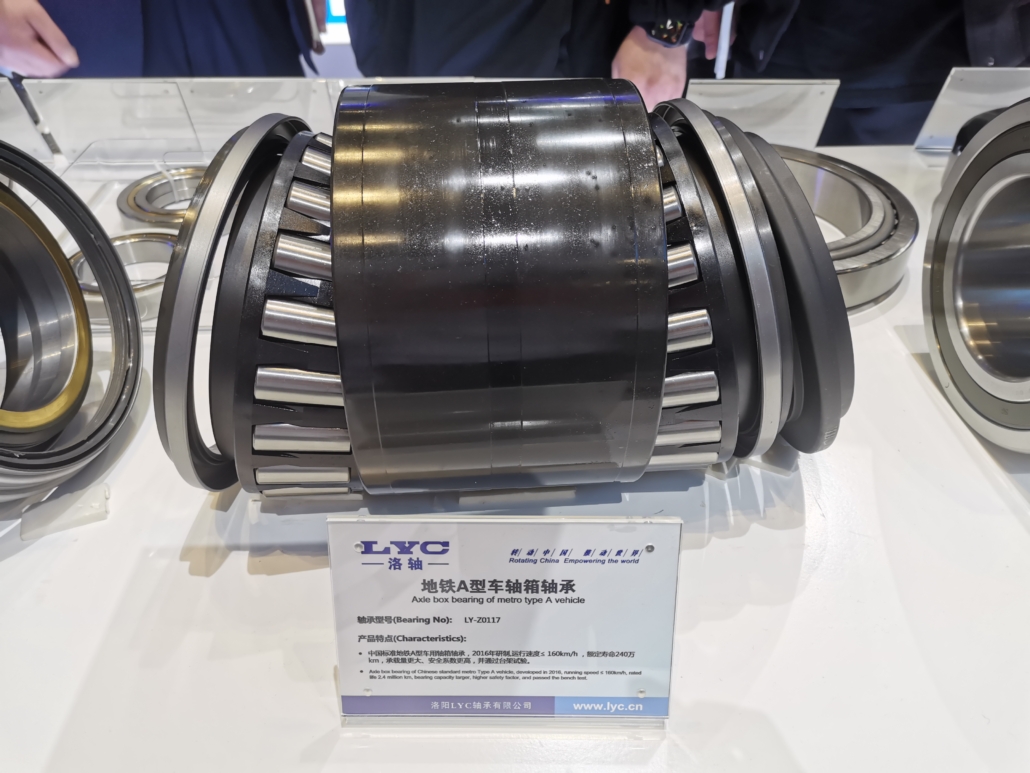

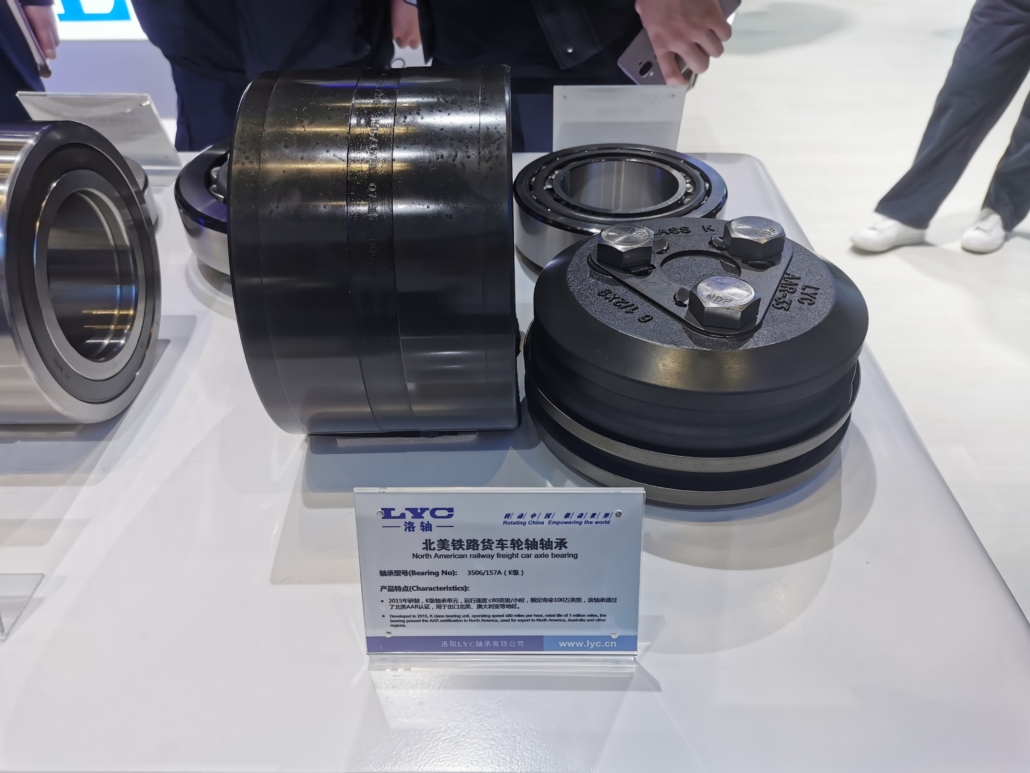

At the recent 2023 exhibition, LYC Bearing Group showed various high-end bearings to the world. In particular, various bearings used in railways are displayed. Including high-speed rail axle box bearings, railway freight wheel axle bearings, subway A-type axle box bearings and so on. LYC Bearing has rich design and production experience in the field of railway bearings. The annual output of each bearing reaches 100,000 sets. As the leader of China’s railway bearings, LYC bearings are constantly innovating in design to achieve longer service life and safety factor.
| Bearing number | Size | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | d1 | D | D1 | B | B1 | C1 | C2 | L | |||||||||
| 53130B,CTBU150 | 150 | 180 | 250 | 225 | 83.15 | 180.6 | 160 | — | 265.3 | ||||||||
| 353130A | 150 | 180 | 250 | 224 | 71 | 156 | 160 | 206 | 275 | ||||||||
| 353130X2-2RZ | 150 | 180 | 250 | 223 | 71 | 156 | 160 | 224 | 290 | ||||||||
| 353130-2RS,TBU150 | 150 | 180 | 250 | 219 | 70.1 | 154.5 | 160 | 206.5 | 289.8 | ||||||||
| TAROL150 | 150 | 180 | 250 | 219 | — | 154.5 | 160 | 216.5 | — | ||||||||
| AP150 | 150 | 180 | 250 | — | 69.85 | 153.65 | 160 | — | — | ||||||||
| 352226X2-2RZ | 130 | 165 | 230 | 205 | 67 | 150 | 150 | 222 | 278 | ||||||||
| 197726 | 130 | 165 | 230 | 205 | 67 | 150 | 150 | 222 | 278 | ||||||||
| 197726TN | 130 | 165 | 230 | 205 | 67 | 150 | 150 | 222 | 278 | ||||||||
| AP130 | 130 | 165 | 230 | — | 69.5 | 144 | 150 | 206 | — | ||||||||
| 197720 | 100 | 127 | 182 | 167 | 52 | 117 | 117 | 189 | 231 | ||||||||
| 197730 | 150 | 180 | 270 | 235 | 79 | 170 | 170 | 246 | 304 | ||||||||
| RUM6S26A/H | 130 | — | 230 | — | 150 | — | — | — | — | ||||||||
| RUM6S26B/M | 130 | — | 230 | — | 150 | — | — | — | — | ||||||||
| RUM6S26C/M | 130 | — | 230 | — | 150 | — | — | — | — | ||||||||
| RUM6L26A/H | 130 | — | 250 | — | 160 | — | — | — | — | ||||||||
| RUM6L26B/H | 130 | — | 250 | — | 160 | — | — | — | — | ||||||||
| RUM6L26C/M | 130 | — | 250 | — | 160 | — | — | — | — | ||||||||
| RUM226B1/H | 150 | — | 250 | — | 160 | — | — | — | — | ||||||||
| RUM226B2/H | 150 | — | 250 | — | 160 | — | — | — | — | ||||||||
| 30-42822Е2М | 110 | — | 215 | — | 76 | — | — | — | — | ||||||||
| 30-92710АЛ1 | 50 | — | 110 | — | 35 | — | — | — | — | ||||||||
| 30-232822Е1М | 110 | — | 215 | — | 76.7 | — | — | — | — | ||||||||
| 30-42822Е2МП | 109.5 | — | 215 | — | 76 | — | — | — | — | ||||||||
| ВТ2-8720 ВС-03 | 150 | — | 250 | — | 160 | — | — | — | — | ||||||||
