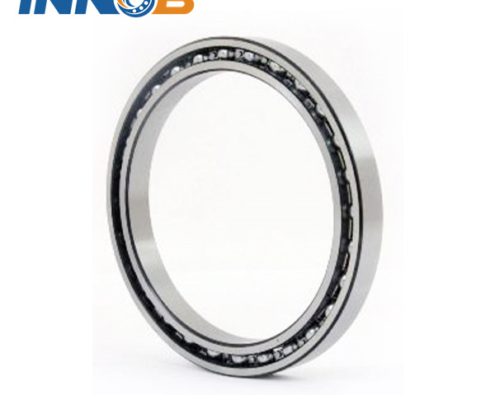

Open thin section bearings

The ring of thin section bearing is very thin and the cross section is small. It is characterized by light weight, low friction, high rigidity and high rotation accuracy. It is especially suitable for compact and light structures with high rigidity and large aperture. thin section bearings are widely used in aircraft, aerospace, textile printers, medical equipment, radar communications, astronomical instruments and industrial robots.

The difference between thin-section angular contact ball bearings and standard angular contact ball bearings is that the cross-sectional dimensions are designed to be single, while the cross-sectional bearings and standard dimensions cannot be changed in a series. Will not increase with the increase in pore size. Therefore, this kind of thin-section bearing is called a uniform-section thin-section bearing. By using the same series of thin-section bearings in the entire product line, designers can standardize on common components.


Product Parameter


Principal dimensionsBasic load ratings
DynamicStatic
dDBCrCor
mmKN
18.8254904KAT2
24325905KAT2
25.434.9254.7622.51.76TD61100A
25.434.9254.7622.551.86TDQJ1100A
30406806KAT2
305510CRB3010-2RS
37508907KAT2
38.147.6254.7622.82.32TD61108A
38.147.6257.6252.92.6TDQJ1108A
406510CRB4010+2RS
45609809KAT2
508015CRB5015-2RS
50.863.56.354.53.9TD62200A
50.866.6757.9386.45.2TD63200A
50.863.56.354.754.4TD72200M
50.863.56.354.654.3TDQJ2200A
577513911KAT2
609015CRB6015-2RS
608013812KAT2
63.576.26.354.94.65TD62208A
88.9104.7757.9387.88.15TD63308A
88.9101.66.355.67.35TDQJ2308M
88.9104.7757.9388.159.8TD73308M
9014020CRB9020-2RS
9012018818KAT2
10015020CRB10020-2RS
101.6120.659.52510.411TD64400A
101.6120.659.52510.612.7TDQJ4400A
101.6120.659.52511.213.2TD74400M
101.6120.6512.7FPXU400-2RZ
63.579.3757.9387.357.2TD73208M
63.579.3757.9386.956.2TD63208A
63.579.3757.9387.16.95TDQJ3208A
7010015CRB7015-2RS
709515814KAT2
7510015815KAT2
76.288.96.355.25.4TD62300A
76.288.96.355.46.2TD72300M
76.288.96.355.36.3TDQJ2300A
8013020CRB8020-2RS
107.9512712.710.611.6TF65404-2RS-A
107.95146.0519.052926.5TD67404A
107.9512712.710.8513.4TFQJ5404-2RS-A
