Split spherical roller bearings

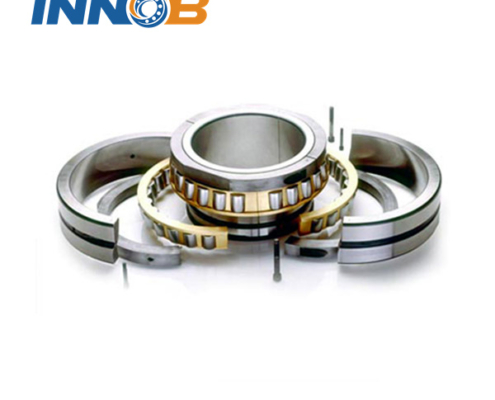

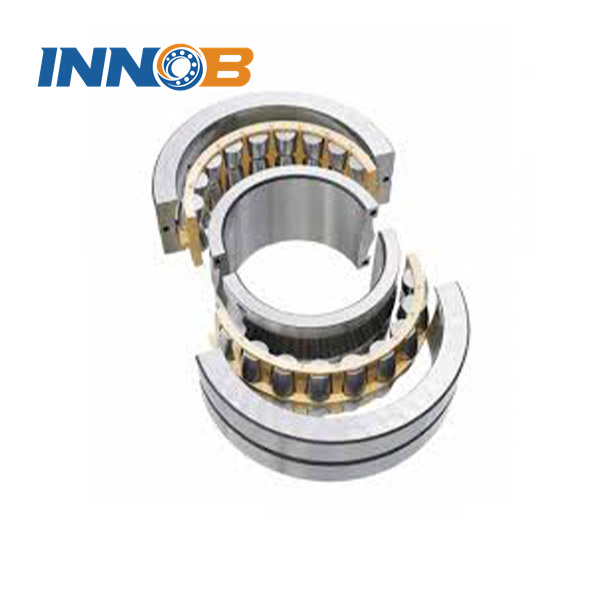

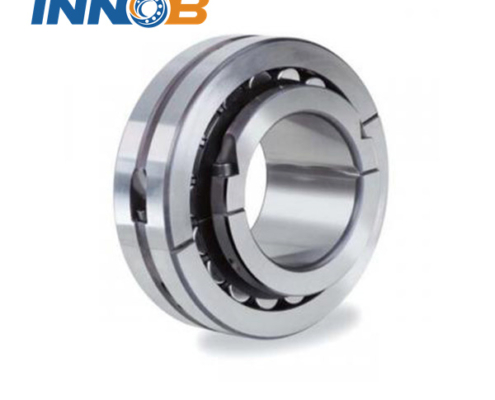

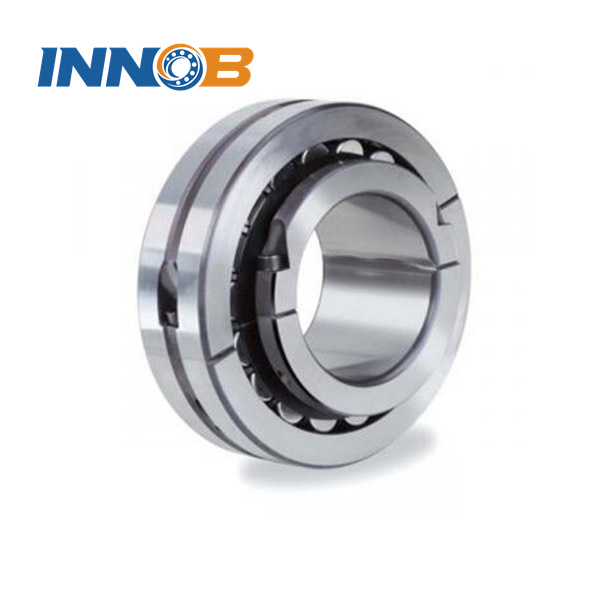

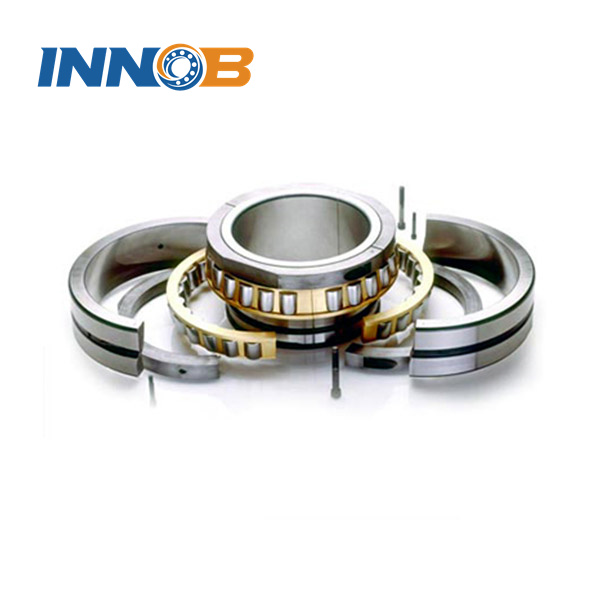

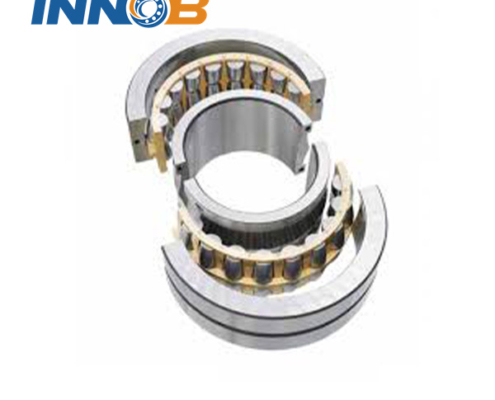

The inner and outer rings and cage of split spherical roller bearings are cut into two halves at a certain angle along the axial direction. This structure has basically the same performance as ordinary integral spherical roller bearings, and has a large carrying capacity. It is used in occasions where the bearing cannot be installed in the axial direction. However, due to the split surface of the inner and outer ring raceways, the running speed is relatively low.


Product Parameter


Principal dimensionsBasic load ratingsLimiting speedDesignation
DynamicStaticGreaseOil
dDBCrCorRPMRPM
mmKNr/min
48087031075801380026034023296CA/W33
4807001653540739038048023096CAK/P53/W33
48087031070901330025032023296D/W33
49467012824406060400500239/494K/W33
49467012824406060400500239/494/W33
50072016735007600380480230/500K/W33
50067012824406060400500239/500K/W33
50072016735007600380480230/500/W33
50067012824406060400500239/500/W33
53078018539308550340430230/530K/W33
53078018539308550340430230/530/W33
530980355996018500240320232/530CA/W33
530980355996018500240320232/530CAK30/W33
53078018544409320340430230/530CAK/W33 YB
560820195446010020300380230/560K/W33
560820195470010300320400230/560CAK/W33
560920280799016000240320231/560K/W33
560920355945019500190260241/560CAK30/W33
560820195446010020300380230/560/W33
560820195470010300320400230/560CA/W33
560920280799016000240320231/560/W33
560920355945019500190260241/560CA/W33
560920280775015300240320231/560CA/C4W33S2
56075014031507220420580239/560CA/W33
600870200481011000300380230/600K/W33
6009803751040021300180240241/600K30/W33
600870200481011000300380230/600/W33
6009803751040021300180240241/600/W33
630920212536012200260340230/630K/W33
630920212536012200260340230/630/W33
67090017041309840260340239/670K/W33
670980230624013700240320230/670K/W33
67090017041309840260340239/670/W33
670980230624013700240320230/670/W33
67012204381550030200190250232/670CAK30/C3W33
670980308844019700220300240/670CA/C4W33S2
67010904121250026900210280241/670CAK30/C3W33
710950180429010900240320239/710K/W33
7101030236653015130220300230/710K/W33
71011504381370029940150190241/710K30/W33
710950180429010900240320239/710/W33
7101030236653015130220300230/710/W33
71011504381370029940150190241/710/W33
7101030315889020700210290240/710CA
7501090250789017600200280230/750K/W33
7501090250789017600200280230/750/W33
7501090335934022300180260FD-240/750/W33
75013604751850035700150210232/750CAK30F1/C3W33
8001060258717019030200280249/800K30/W33
8001150258863020000190260230/800K/W33
80011503451000025700170220240/800K30/W33
8001060258717019030200280249/800/W33
8001150258863020000190260230/800/W33
80011503451000025700170220240/800/W33
8501120200610015800190260239/850K/W33
8501220272905021100180240230/850K/W33
