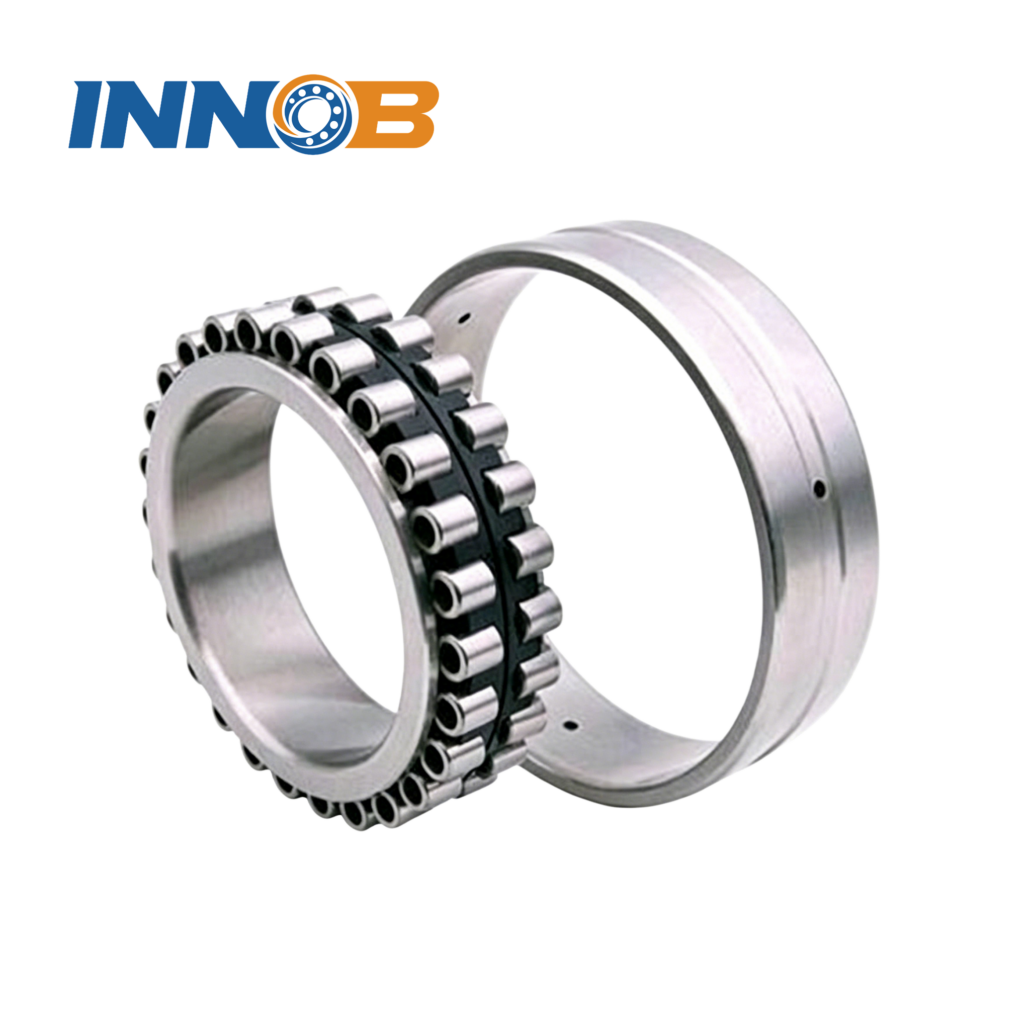

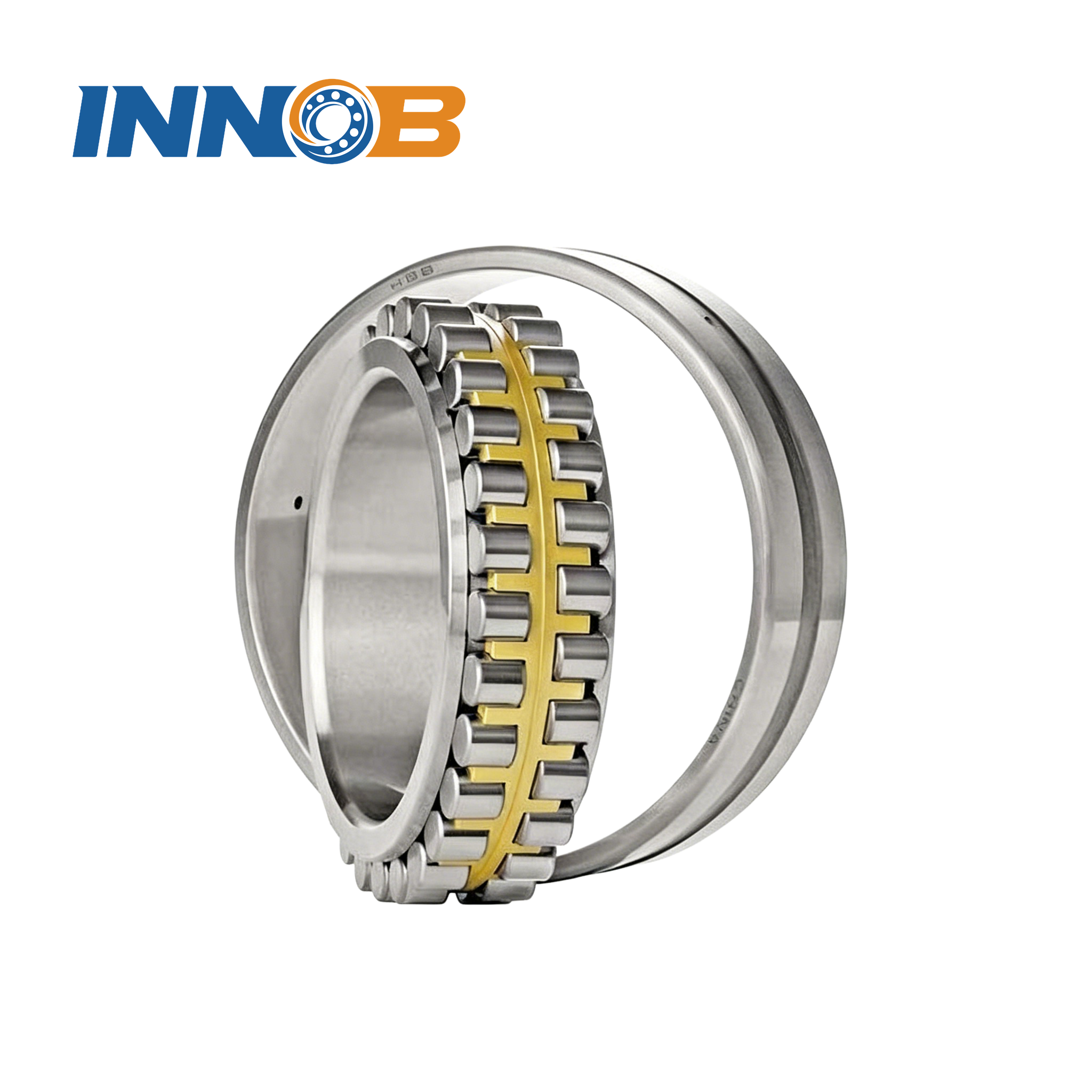

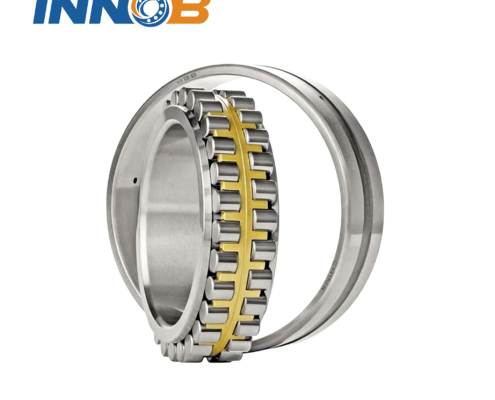

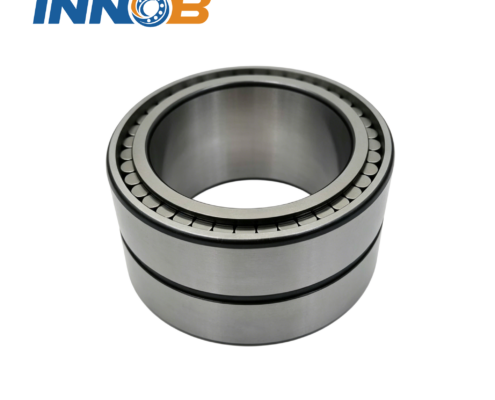

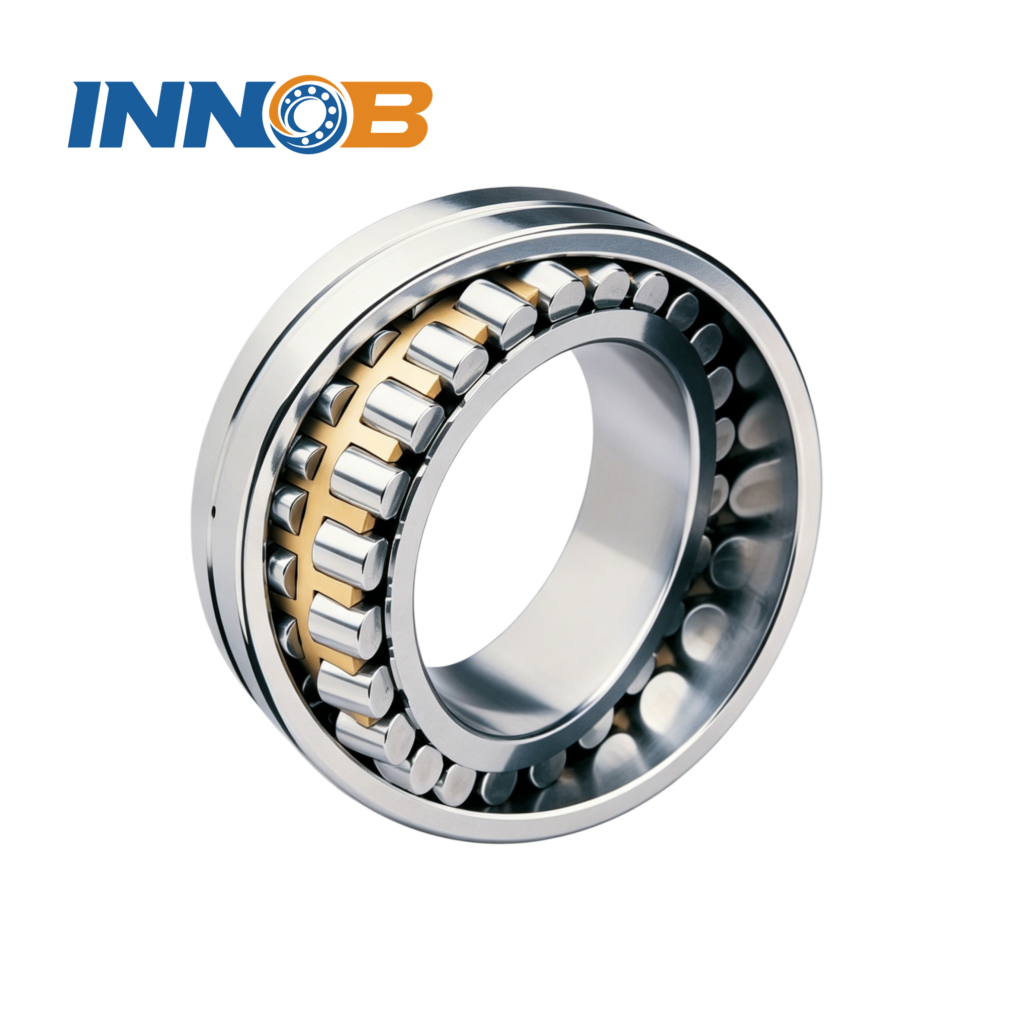

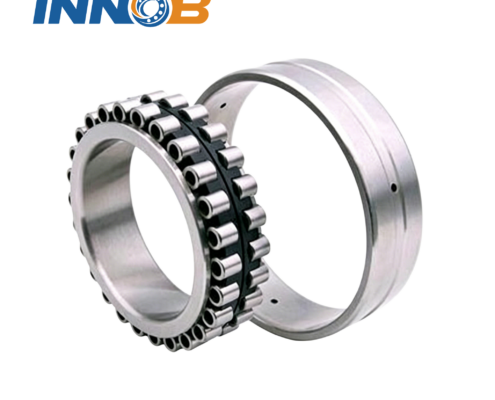

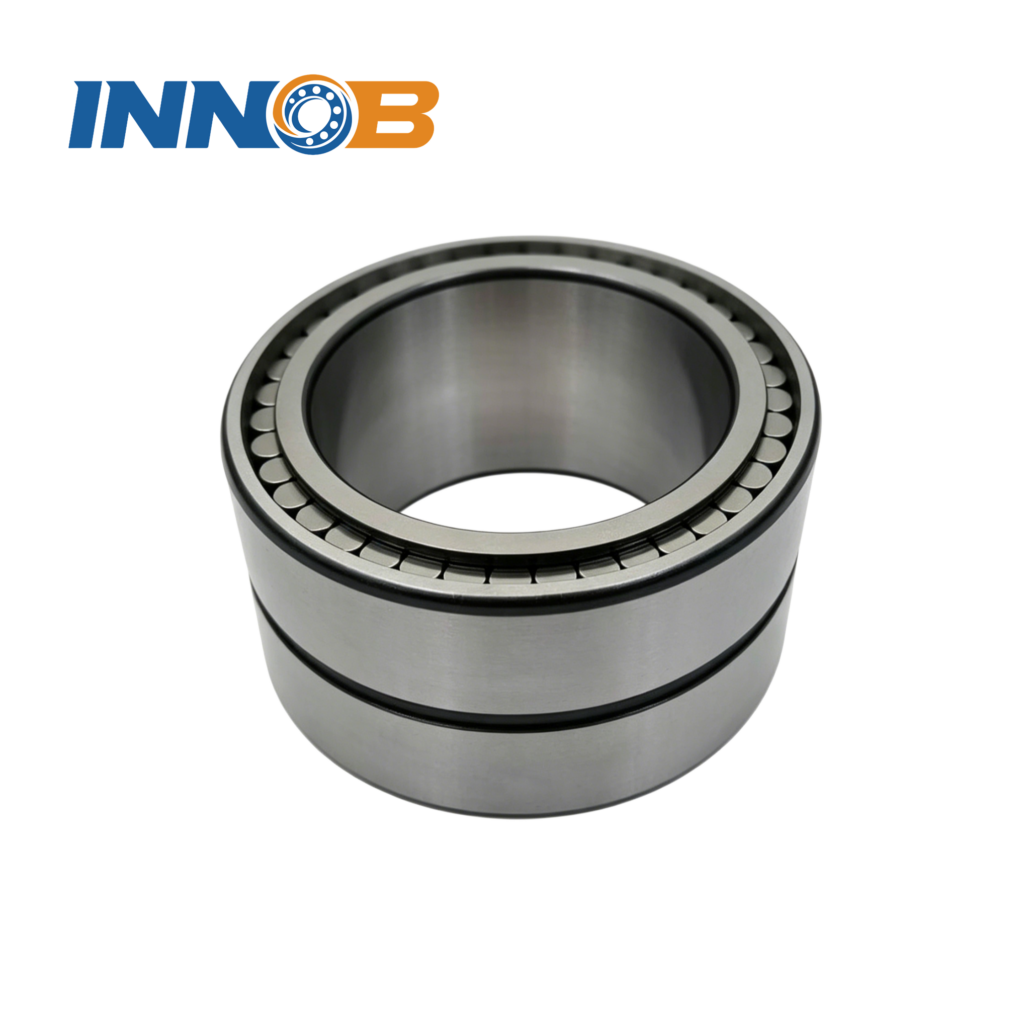

Double Row Cylindrical Roller Bearing

Double row cylindrical roller bearings have two structures: cylindrical inner bore and conical inner bore (the bearing code is added with K). The bearing has the advantages of compact structure, high rigidity, large carrying capacity, and small deformation after being loaded. It is especially suitable for the support of machine tool spindles. The conical inner hole can also play the role of micro-adjustment of the clearance, and can simplify the structure of the positioning device and facilitate installation and disassembly. Commonly used Double row cylindrical roller bearings are: NN, NNU, NNF type.



Product Parameter


Principal dimensionsBasic load ratingsLimiting speedDesignation
DynamicStaticGreaseOil
dDBCrCorRPMRPM
mmKNr/min
40683782.11212000NNF5008-2LSNV
4068381001422000NNF5008DA.V.C4.S3
40683899.614148006000NNCF5008V/P54 S3
5080235373.280009400NN 3010 K
5590451442281500NNF5011-2LS
60952670.2105850010000NN3012K
60952670.2105850010000NN3012

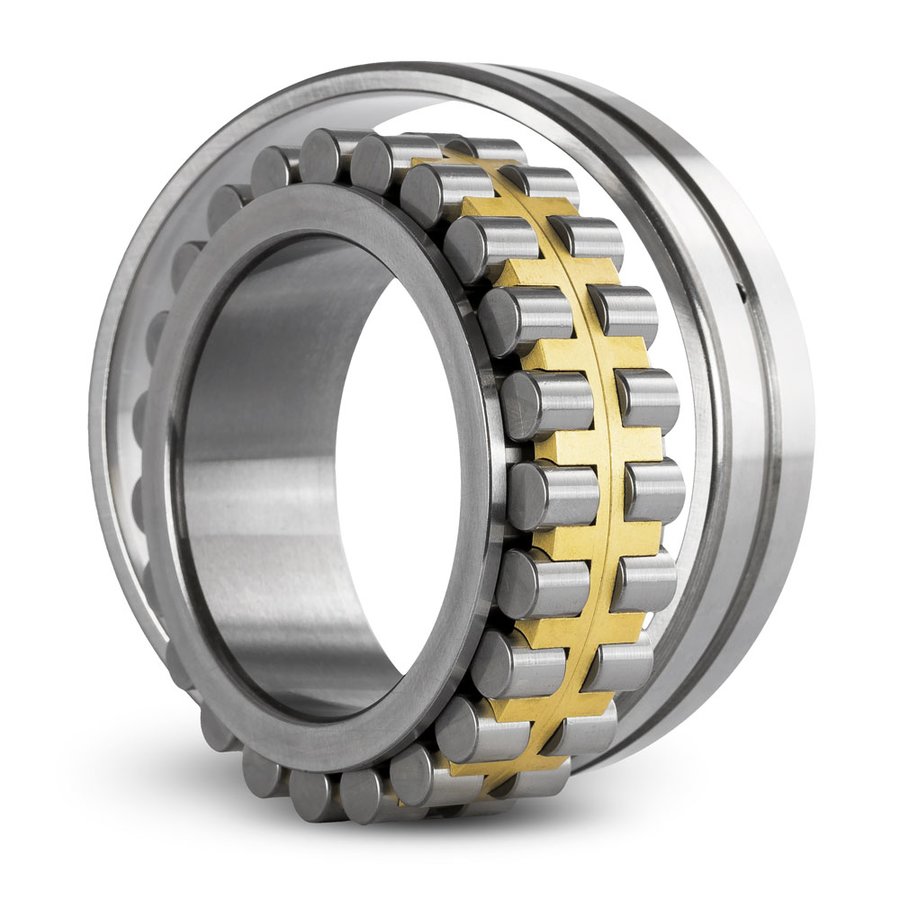

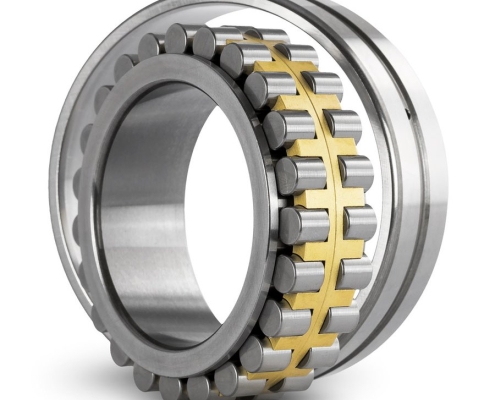

701103095.814570008500NN3014K
751153010115867008000NN3015K
751153010115867008000NN3015
801253412319463007500NN3016K
801253412319463007500NN3016
851303412219560007000NN3017K
901403714222656006700NN3018K
9014066297560900NNF5018-2LSNV

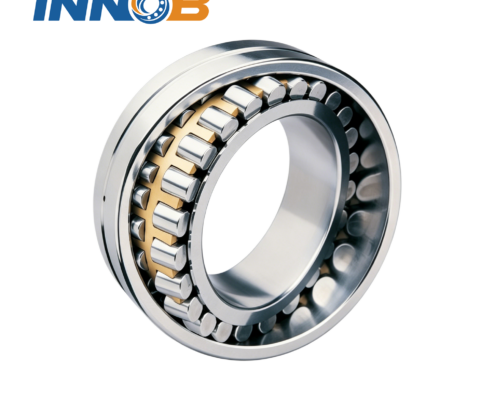

1001503716127453006000NN 3020 K
10015066320585850NNF5020-2LSV/YA1
1051604120132848005600NN 3021K
11020069.837259231003900NN 3222
11017080389711570750NNF5022-2LSNV
1201804623539743005000NN3024K
12018079406765530700NNF5024-2LSNV
1302005229449840004500NN3026K
1302005229449840004500NN3026K/W33
1402105330853938004300NN 3028 K
1402105330853938004300NN 3028
1502255633558736004000NN3030K
1602406044677634003800NN3032K
1602406044677634003800NN3032K/W33
