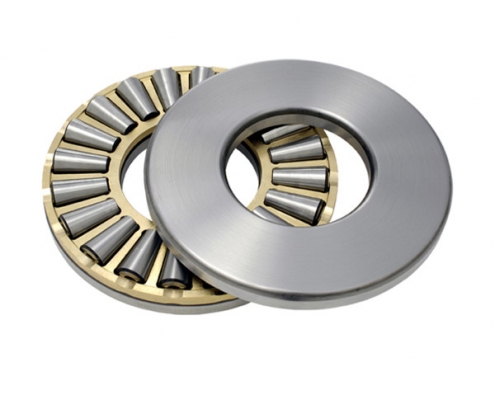

Tapered roller thrust bearings

The inner and outer raceways of thrust tapered roller bearings are tapered, and the rolling elements are also tapered rollers. The extension lines of the three converge at the same point of the bearing line of the bearing. Therefore, the movement friction is smaller than other thrust roller bearings. Thrust tapered roller bearings do not allow angular error between the shaft and the bearing seat.


Product Parameter


Principal dimensionsBasic load ratingsLimiting speedDesignation
DynamicStaticGreaseOil
dDBCrCorRPMRPM
mmKNr/min
84.92576.289301T135
1702404031560270450LY-9035(829234)
1803601920670030050099436M/P6
2004001720722620030099440
21046028701445029039091742
21046028701445029039091742 DS
24054051002876025034091748/YA
26048025581136016022099452
27055040802094024033091754
28052029501335014019099456
32058037401753711016099464
32058042601640011016099464M
32044010004660100150LY-9036(829264)
34046010705640100180LY-9037(829268H)
35049013306470130200LY-9038(829970)
3806704710228708512099476
1290155069705595095120917/1290
